Double ridge horn antenna 0.9-8 GHz

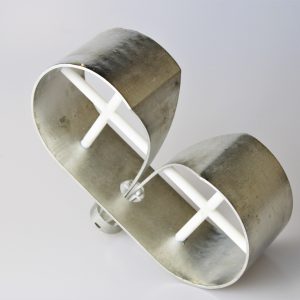

ELL-A3D-SP-00900800-01 is a standard horn antenna operating in the frequency band 0.9 GHz to 8 GHz with a typical gain of 5 dBi for 0.9 GHz and 17 dBi for 8 GHz. More details can be found in the description below.

  • Description
  • Additional information
  • Contact us

Description

This horn antenna operates in a frequency band of 1 GHz to 8 GHz. It offers a typical value of 5 to 17 dBi of gain.

The reference ELL-A3D-SP-00900800-01 is a horn antenna with progressive aperture, or Vivaldi antenna, operating in the frequency band 2-18 GHz and produced by stereolithography. In order to limit the weight of this antenna in addition to the additive manufacturing method, we applied a lightening method to the walls of the antenna. This technique makes it possible to reduce the weight of the metallic 3D printing antenna by 80% compared to a conventional machining technique while maintaining good adaptation over the entire operating frequency band of the antenna. this technique allows us to divide the weight of the antenna by three.

Additional information

Frequency (GHz)

0.9-8

Connector

SMA

Gain (dB)

5-17

Ref

ELL-A3D-SP-00900800-01

Bulk size W x L x H mm3

244 x 144 x202
